(型號) Model |
(軸承類型) Bearing Type |
(電壓) Rated Voltage |
(電壓范圍) Operation Voltage |
(電流) Current |
(轉數) Speed |

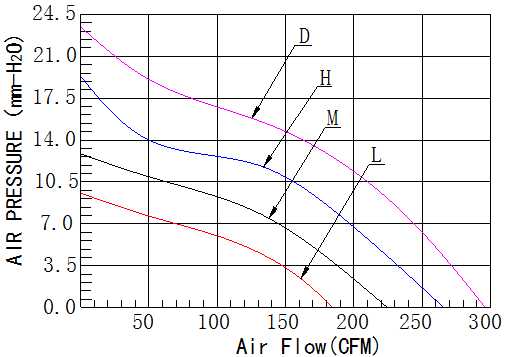

(風量) Air Flow |
(風壓) Static Pressure |
(噪音) Noise Level |
(重量) Weight |
VDC | VDC | A | RPM | CFM | mmH20 | dBA | g | ||
JDD17051B | Ball | 24 | 21.6~26.4 | 1.50 | 4000 | 296.00 | 24.04 | 74.4 | 760 |
JDH17051B | 1.00 | 3600 | 266.00 | 19.48 | 67.0 | ||||
JDM17051B | 0.60 | 3000 | 222.00 | 13.54 | 55.8 | ||||
JDL17051B | 0.40 | 2500 | 185.00 | 9.40 | 46.5 | ||||
JDD17051B | 48 | 43.2~52.8 | 0.80 | 4000 | 296.00 | 24.04 | 74.4 | ||
JDH17051B | 0.60 | 3600 | 266.00 | 19.48 | 67.0 | ||||
JDM17051B | 0.35 | 3000 | 222.00 | 13.54 | 55.8 | ||||
JDL17051B | 0.25 | 2500 | 185.00 | 9.40 | 46.5 |
