(型號) Model |
(尺寸) Size(mm) |
(電壓) Rated Voltage |
(頻率) Fre- quency |
(電流) Current |
(功率) Power |
(轉數) Speed |
(風壓) Max.Static Pressure |
(風量) Maximun Air Flow |
(噪音) Noise Level |
(重量) Weight | ||||

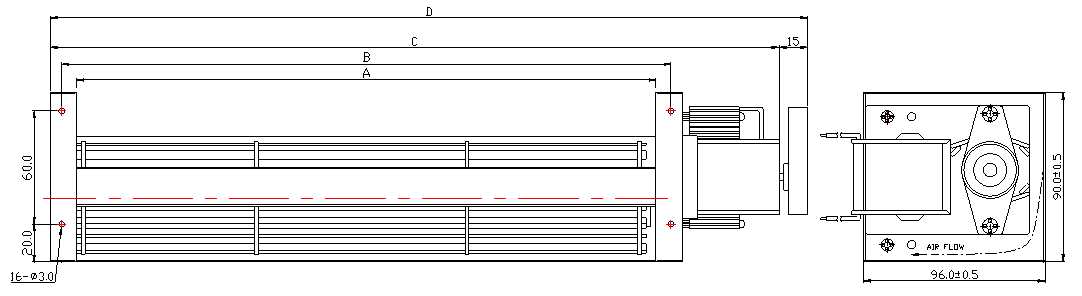

A | B | C | D | VDC | Hz | A | W | RPM | mmAq | M3/min | CFM | dBA | g | |
JAH0618X-A | 184 | 199 | 262 | 277 | 120 | 60 | 0.33 | 23 | 1700 | 3.8 | 1.80 | 63 | 35 | 1200 |
JAH0618X-A | 230 | 50 | 0.17 | 23 | 2000 | 3.7 | 2.50 | 88 | 39 | |||||
JAH0624X-A | 245 | 260 | 323 | 338 | 120 | 60 | 0.42 | 31 | 1900 | 4.9 | 2.90 | 102 | 41 | 1400 |
JAH0624X-A | 230 | 50 | 0.23 | 31 | 2000 | 3.9 | 3.30 | 118 | 42 | |||||
JAH0630X-A | 300 | 321 | 384 | 396 | 120 | 60 | 0.63 | 42 | 1900 | 4.7 | 3.20 | 114 | 42 | 1500 |
JAH0630X-A | 230 | 50 | 0.28 | 36 | 2200 | 4.6 | 4.40 | 154 | 44 |
